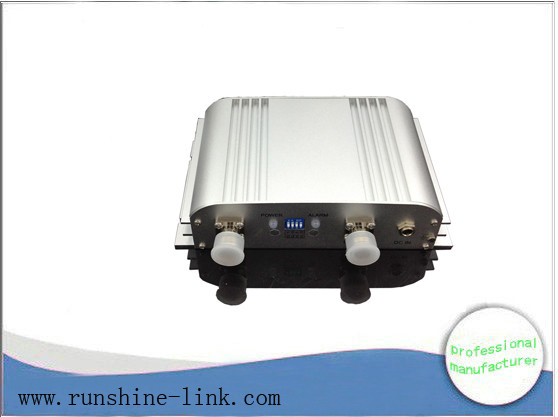

900MHZ wide band Mobile signal amplifier with GSM 17dBm

Place of Origin : China

Brand Name : Runshine

Certification : CE ROSH FCC

Model Number : RSFD-GSM-17

MOQ : 10

Delivery Time : 1 Week after confirmed payment

Payment Terms : TT/ Western union / Paypal / Money gram

Supply Ability : 10000 set / month

Model No : RSFD-GSM-17

Frequency Range : Uplink:890 ~ 915 MHz Downlink:935 ~ 960 MHz

Output Power : Uplink:10 ±2dBm Downlink:17 ±2dBm

Gain : Uplink:65 dB Downlink:65 dB

VSWR : ≤2

Power Comsumption : < 6W

Contact Now


900MHZ wide band Mobile signal amplifier with GSM 17dBm



Function:


●Making your mobile phone signal stronger.
●Making you keep in touch with others smoothly in everywhere
●Cell phone signal amplifier repeater booster designed to solve
the mobile phone weak signal.


Application:


● Designed to solve the mobile phone weak signal.
● Underground parking area, Underground market.
● Department Store, Home, Office, Commercial Center.
● Stadium, School, Hospital, Hotel, Subway station etc.


Feature:


● ALC ensure output level stable and adjustable continuously.
● Low power consumption and avoid to interference to BTS.
● LED indicate and judge to signal level of uplink and downlink.
● AGC and MAC function.
● Customized band selective.
● With the amplified linear power, the intermodulation and and
spuriousness are suppressed effectively.
● Compact design, to easy or and convenient installation.

Model No RSFD-GSM-17
Parameter data Uplink Downlink
Frequency Range 890 ~ 915 MHz 935 ~ 960 MHz
Output Power 10 ±2dBm 17 ±2dBm
Gain 65 dB 65 dB
Bandwidth Wide Band
Automatic Gain Control ＞20dB
Ripple in Band ≤5dB
Intermodulation Products 9KHz~1GHz ≤ -36 dBm
1GHz~12.75GHz ≤ -30 dBm
Noise Figure @ max. gain ≤ 6 dB
VSWR ≤2
MTBF ＞50000 hours
Power Supply AC:90~265V, 50/ 60Hz；DC:5V 2A
Power Comsumption < 6W
Impedance 50 ohm
Mechanical Specification
RF Connector N-Female
Cooling Heatsink Convection cooling
Dimensions (D x W xH ) 176*100*44(mm)
Weight 0.8Kg
Installation Type Wall Installation
Environment Conditions IP40
Humidity < 90%
Operating Temperature -10℃ ~ 55℃
