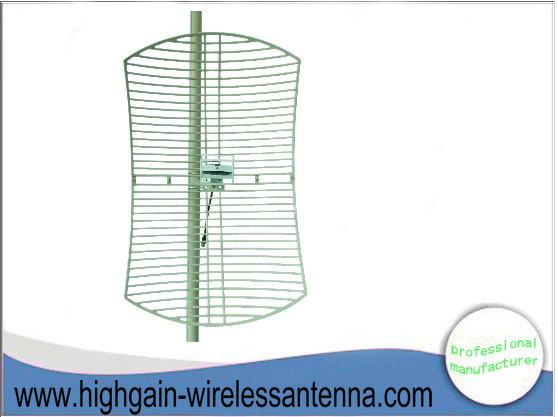

Grid Parabolic High Gain Wireless Antenna

Product name : High Gain Wireless Antenna

Application : Long-distance transmission/2.4GHZ WIFI WILAN system

Frequency rang-MHz : 2400-2483

Bandwidth -MHz : 83

Gain -dBi : 24

Polarization : Horizontal or Vertical

Place of Origin : Shenzhen China

Brand Name : Runshine

Certification : ROSH

Model Number : RSGR-2400-24

MOQ : 100pcs

Delivery Time : 1 week after received the payment

Payment Terms : TT in advance

Contact Now

Grid Parabolic High Gain Wireless Antenna

Feature:

● UV stable coat finish
● Can be installed H or V
● High Gain, Larger F/B Ratio
● Die cast aluminum reflector

Application:
● 2.4GHZ WIFI WILAN system
● Long-distance transmission
● Wireless bridge

Specification

Model NO	RSGR-2400-24
Electric Spec
Frequency rang-MHz	2400-2483
Bandwidth -MHz	83
Gain -dBi	24
beam width -°	H:14 V:10
F/B RATIO-dB	≥16
VSWR	≤1.5
Input Impedance-Ω	50
Polarization	Horizontal or Vertical
Max power -W	100
Lightning protection	DC ground
Connector model	N-Type or Customized
Mechanical Specification
Size -mm	600*900
Cable length-m	0.3
Antenna weight-kg	3.2
Working Temperature -°c	-40～60
Rated Wind Velocity-m/s	60
Clamp	U
Pole diameter -mm	Φ40～Φ50

Antenna details :

Application Example :

Install demonstration

View of us ;
